Membrane-Clean WF-I
PTFE Cartridges

Membrane-Clean WF-I PTFE cartridges are chemical resistance products manufactured for Ultra pure chemicals application with high flow and high efficiency.


Features and benefits

● High filtration rate
Membrane-Clean WF-I uses PTFE membrane of uniform pore size and the effective filtration area of 10 inch filter reaches 0.93 square meters.  The composition of doubled feature provides filter with high filtration efficiency, high flow rate and long life.
● Performance Consistency
The filtration medium and Attachments of Membrane-Clean WF-I PTFE cartridges manufactured in clean-room are strictly controlled and processed in raw material. The high cleanness filter separating out extremely low organics experienced ultra-pure water wash and 100% integrity test which ensures the consistency of performance.


● Features

● PTFE filtration membrane
● Uniform pore size membrane
● High contaminant holding compatibility and high efficiency
● Wide Filtering Accuracy: 0.04 micron~3 micron
● 100% integrity test

Application

● Key filtration points of LCD manufacture, such as etchants
● Organic solvent
● Photoresists
● Strong acid, strong base
● ultra-pure water
● Ultra pure chemicals
● Fine chemistry

Filter configuration

● Filter media: PTFE
● Inner support: PP
● Outer Cage: PP
● Filter Media Support: Polypropylene (PP)
● Sealing: Thermal Bond
● Attachment (gasket/o-ring):
● Silicone, Nitrile rubber, ethylene propylene rubber, Viton, FEP EncapsulatedSilicone

Operating Conditions

● Maximum Operating temperature: 95℃ (203℉)
● Maximum Forward Pressure Differential: 73psi@77 ℉ (5bar@25℃)  20psi@203℉ (1.4bar@95℃)
● Diameter:  66mm (2.62inch)
● Length (inch): 10, 20 30, 40
● Chemical compatibility: consult Technical Engineer of Unifiltech

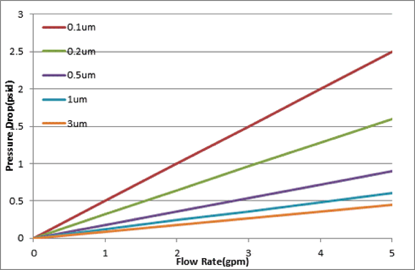

Flow rate vs pressure drop (DI water @20℃)*

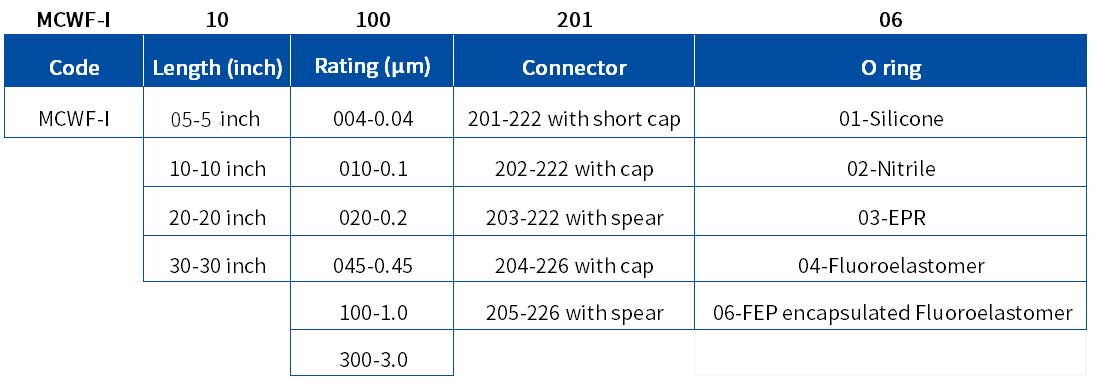

Ordering Information
