Unifiltech UE series filter Vessel is a non-metallic filter vessel specially developed for high flow filter cartridges. The filter cartridge can be equipped with UE high flow filter cartridge or 10 inch standard filter cartridges either. The filter vessel is designed with all plastic and multi-materials to provide more choice for filtration process. The filter cartridge is easy to replace and install with less space, the initial pressure difference is low but the highest flow rate can reach 80GPM per hour.

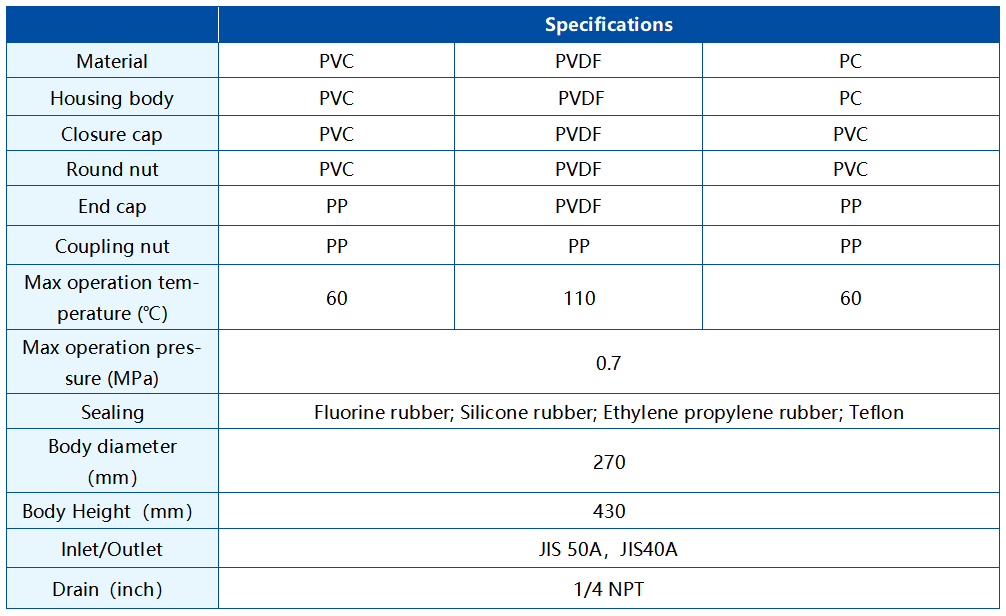

Material：PVC; PVDF; PC
Vessel body：PVC; PVDF; PC
Closure cap：PVC; PVDF; PVC
Round nut ：PVC; PVDF; PVC
End cap：PP; PVDF; PP
Coupling nut ：PP; PP; PP
Max operation temperature (℃)：60; 110; 60
Max operation pressure (MPa)：0.7
Sealing：Fluorine rubber; Silicone rubber; Ethylene propylene rubber; Teflon

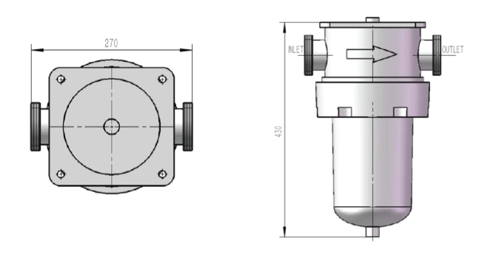

Body diameter（mm）：270
Body Height（mm）：430
Inlet/Outlet：JIS 50A，JIS40A
Drain（inch）：1/4 NPT
● For detailed applications and filtration products, please contact Unifiltech Technical Supports and Sales Engineers.
