Screen-Pure-I Metal Pleat Cartridges

Screen-Pure-I metal Pleat cartridges are manufactured of ultra-fine stainless steel powder and titanium alloy powders with special sintering technology. The cartridges provide high removal efficiency by perfect control of diameter of metal powders and sintering process. Metal cartridges are easily cleaned and back flushing with high temperature, high pressure and corrosion resistance.


Features and benefits

● Screen-Pure-I metal cartridges are constructed of 304L stainless powders, 316L stainless steel powders and titanium alloy powders which provide high temperature, pressure and corrosion resistance.
● Screen-Pure-I metal cartridges are manufactured with special sintering technology to provide repeatedly cleanable performance and easy back-flushing performance.
● Screen-Pure-I metal cartridges have perfect control of diameter of metal powders and sintering process which contribute to uniform pore size construction and big voids. Therefore, the cartridges feature high removal efficiency, low initial pressure drop, high dirt holding capacity and long service life.

Specifications

● Media:304SS; 316LSS;
● Supporting layers:304SS; 316SS
● Tube:304SS; 316LSS
● Connector:DOC;222;226
● Gasket/O ring:PTFE;Nitrile
● Rating:2um;5um;10um;25um;40um;50um;75um;100um;125um;150um;200um;300um; 400um
● Maximum operation temperature: 400℃(threaded connector); 250℃(PTFE); 85℃(Nitrile)
● Length(inch):5;10;20;30;40
● Surface area:0.16 square meter(10inch)
● Diameter:66mm (2.6inch)

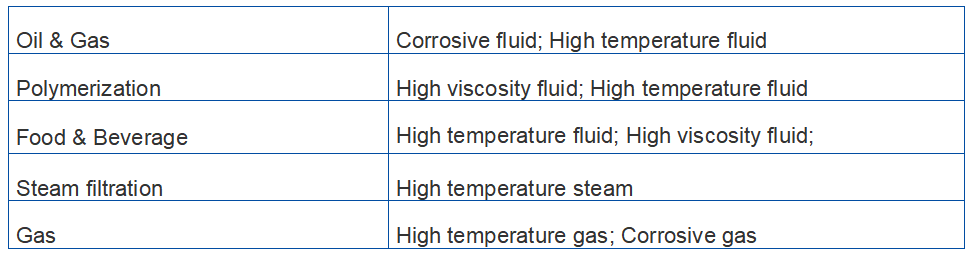

Applications

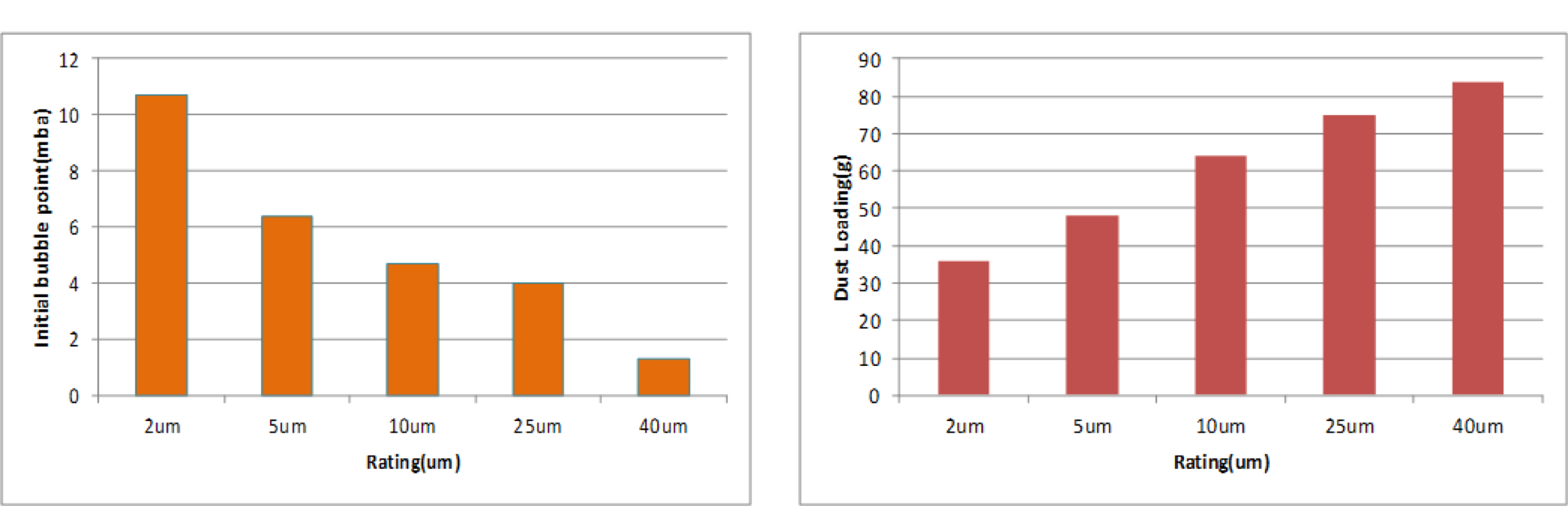

Cartridge Characteristics

● Initial bubble point (mbar)  /   ● Loading capability (gram)


Product Details

● For detailed applications and filtration products, please contact Unifiltech Technical Supports and Sales Engineers.
