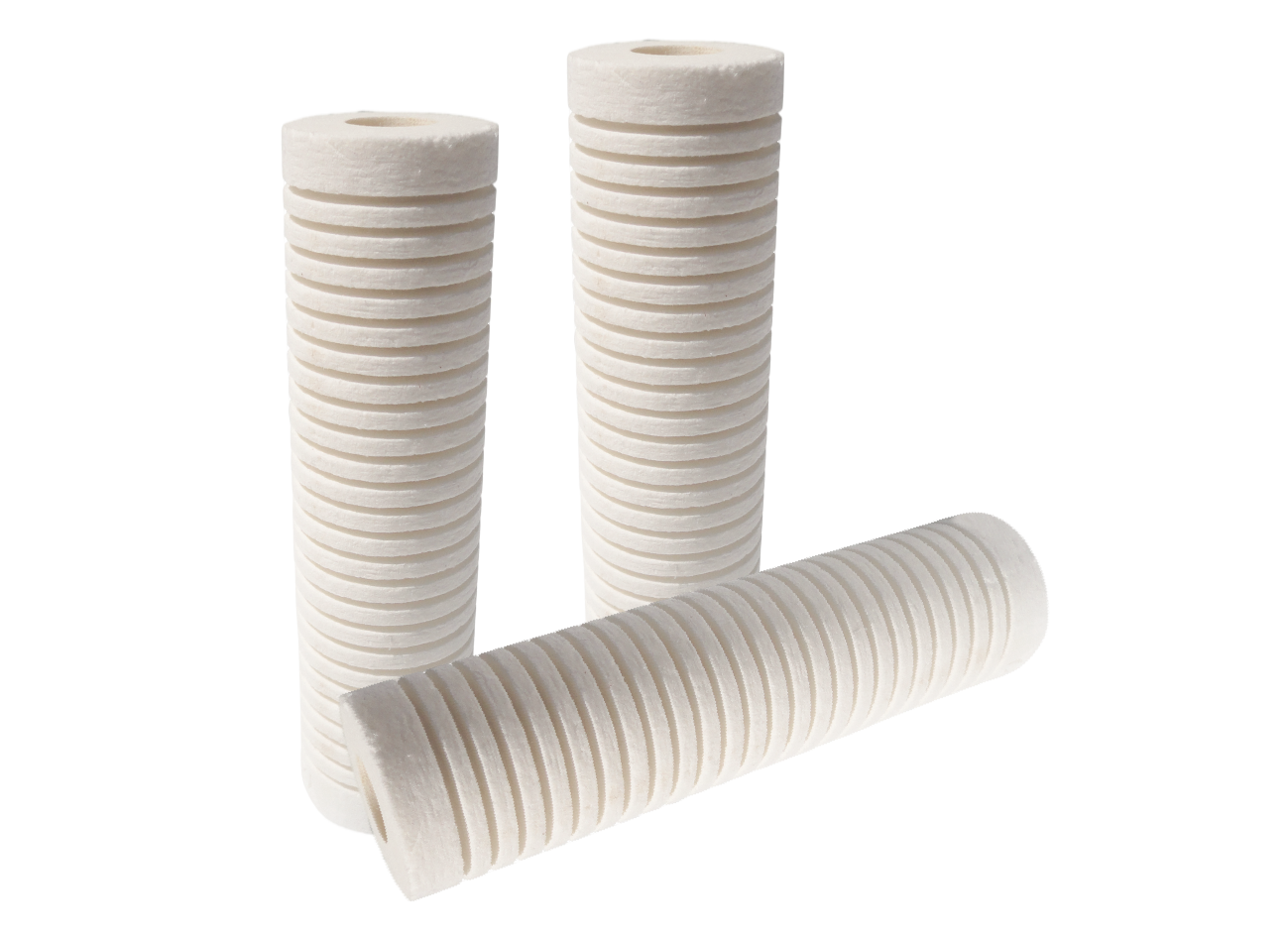

Unifiltech Melt-Pure-IV PE Melt-blown cartridges are specially designed for the applications where the high thermal resistance, broad chemical compatibly and excellent dirt loading capacity are required. The rigid construction design of the elements offer available grades with absolute removal rating to provide consistent effluent quality.
● High temperature filtration requirement
● Food & Beverage
● Pharmaceutical
● Machinery
● Oil & Gas
● Refinery
● Air Filtration
● High Purity chemicals
● Coatings
● Inks
● Others
● Maximum operation temperature: 248 ℉

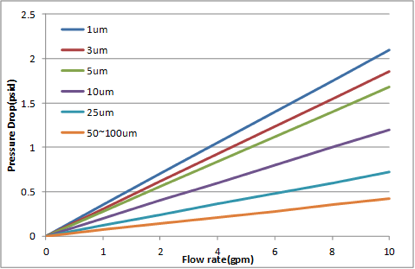

● Maximum forward pressure drop: 60psi@77℉
● Maximum reverse pressure drop: 34psi@77 ℉
● Outside diameter: 2.52 inch (64mm)
● Length (inch)：9.75，10，20，30，40
● Gasket/O ring：Silicone, Fluoroelastomer, Nitrile, EPR, FEP encapsulated Fluoroelastomer
● Media：Polyester (PP)
● Inside Core: Polyester (PP)
● O-ring/ Gasket：Silicone, Fluoroelastomer, Nitrile, EPR, FEP encapsulated Fluoroelastomer
● For detailed applications and filtration products, please contact Unifiltech Technical Supports and Sales Engineers.
