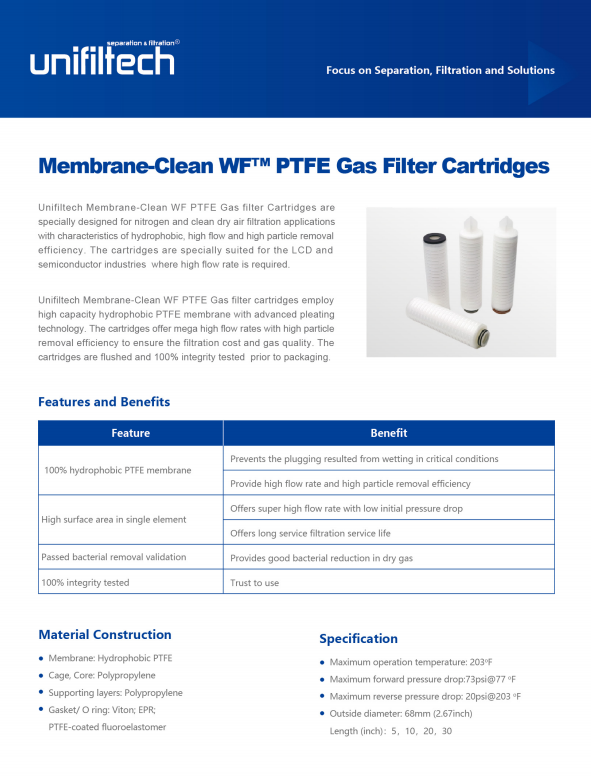

Unifiltech Membrane-Clean WF PTFE Gas Cartridges are specially designed for nitrogen and clean dry air filtration applications with characteristics of hydrophobic, high flow and high particle removal efficiency. The cartridges are suited for the LCD and semiconductor industries where high flow rate is required.
● Unifiltech Membrane-Clean WF PTFE Gas cartridges employ high capacity hydrophobic PTFE membrane with advanced pleating technology. The cartridges offer High Pleat Flow high flow rates with high particle removal efficiency to ensure the filtration cost and gas quality. The cartridges are flushed and 100% integrity tested prior to packaging.
● Membrane: Hydrophobic PTFE
● Cage, Core: Polypropylene
● Supporting layers: Polypropylene
● Gasket/ O-ring: Silicone; EPR;
● Maximum operation temperature: 203℉
● Maximum forward pressure drop:73psi@77 ℉
● Maximum reverse pressure drop: 20psi@203 ℉
● Outside diameter: 68mm (2.67inch)
● Length (inch)：5，10，20，30
● For detailed applications and filtration products, please contact Unifiltech Technical Supports and Sales Engineers.
